Barplot Color Group

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Barplot Color Group plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/barplot-color-group?lang=en

The color group barplot can be used to display data values in groups, and to label different colors in sequence.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: ggplot2; stringr

# Install packages
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("stringr", quietly = TRUE)) {
  install.packages("stringr")
}

# Load packages
library(ggplot2)
library(stringr)

Data Preparation

Data table (three columns):

Term | Entry name, such as GO/KEGG channel name

Count | The numerical size of the entry, such as the number of genes enriched in a pathway

Type | Category to which this channel belongs: such as BP/MF/CC/KEGG

# Load data
data <- read.delim("files/Hiplot/004-barplot-color-group-data.txt", header = T)

# convert data structure
colnames(data) <- c("term", "count", "type")
data[,"term"] <- str_to_sentence(str_remove(data[,"term"], pattern = "\\w+:\\d+\\W"))
data[,"term"] <- factor(data[,"term"],
                        levels =  data[,"term"][length(data[,"term"]):1])
data[,"type"] <- factor(data[,"type"],
                        levels = data[!duplicated(data[,"type"]), "type"])

# View data
data
                                                  term count type
1                                      Immune response    20   BP
2                        Defense response to bacterium    11   BP
3                                      Cell chemotaxis     8   BP
4                                        Cell adhesion    17   BP
5                                Complement activation     8   BP
6                  Cytokine-mediated signaling pathway     8   MF
7                             Phagocytosis, engulfment     5   MF
8              Negative regulation of jak-stat cascade     5   MF
9                             Epoxygenase p450 pathway     4   MF
10                Chemokine-mediated signaling pathway     6   MF
11  Negative regulation of leukocyte apoptotic process     3   MF
12                   B cell receptor signaling pathway     5   MF
13          Cellular response to tumor necrosis factor     6   CC
14                   Positive regulation of chemotaxis     3   CC
15                 Positive regulation of angiogenesis     6   CC
16                        Collagen fibril organization     4   CC
17 Positive regulation of homotypic cell-cell adhesion    20 KEGG
18              Regulation of cell projection assembly    14 KEGG
19                 Prostate epithelial cord elongation    10 KEGG
20                         Bile acid catabolic process     8 KEGG
21                           Cellular response to drug     7 KEGG
22                 Glycosaminoglycan metabolic process     4 KEGG

Visualization

# Barplot Color Group
p <- ggplot(data = data, aes(x = term, y = count, fill = type)) +
  geom_bar(stat = "identity", width = 0.8) +
  theme_bw() +
  xlab("Count") +
  ylab("Term") +
  guides(fill = guide_legend(title="Type")) +
  ggtitle("Barplot Color Group") +
  coord_flip() +
  theme_classic() +
  scale_fill_manual(values = c("#E64B35FF","#4DBBD5FF","#00A087FF","#3C5488FF")) +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

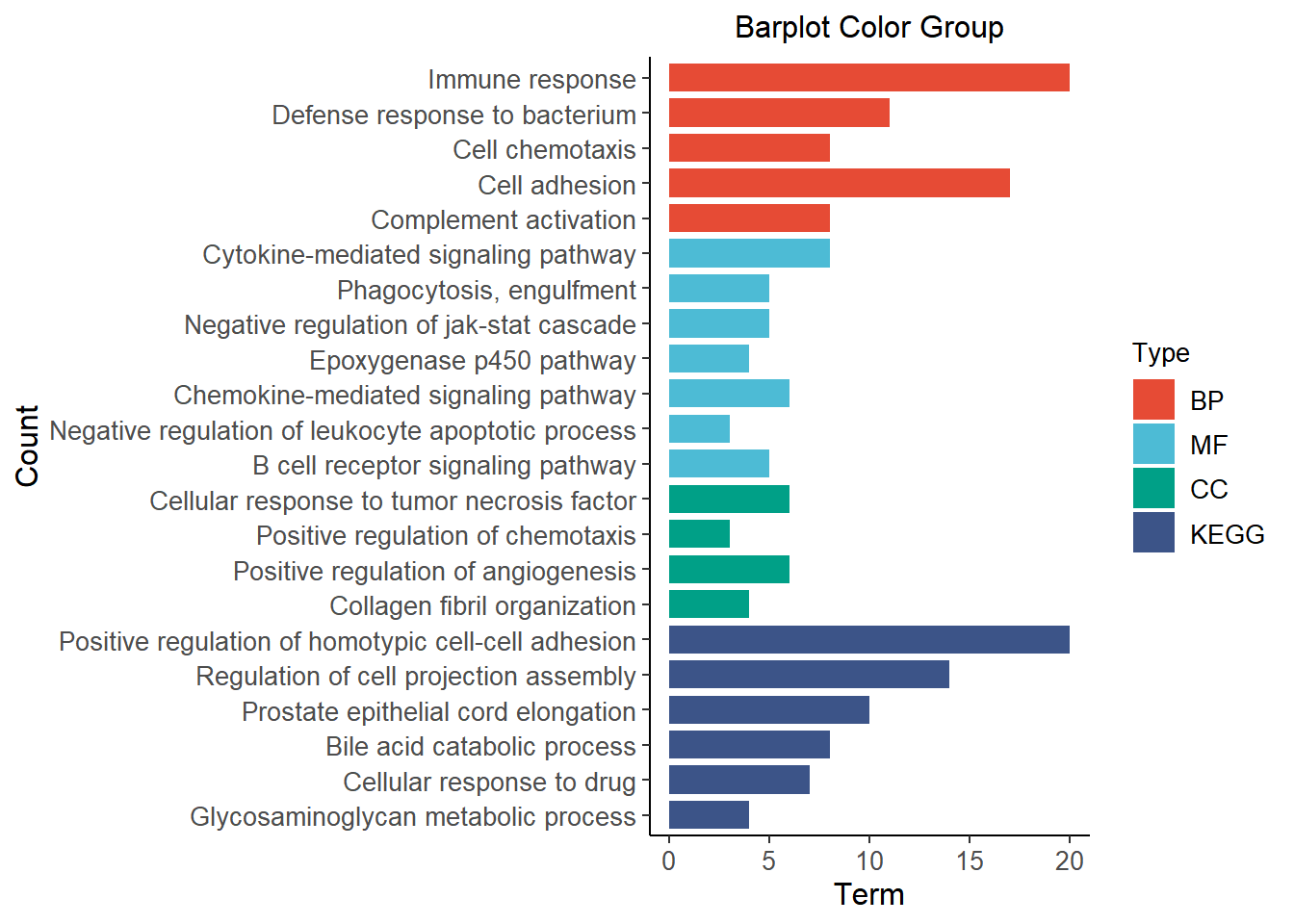

FigureΒ 1: Barplot Color Group

This plot visualizes the results of GO/KEGG pathway enrichment analysis.
