Piestats Group

Authors

[Editor] Hu Zheng;

[Contributors]

Setup

System Requirements: Cross-platform (Linux/MacOS/Windows)
Programming language: R
Dependent packages: ggstatsplot; ggplot2; cowplot

# Install packages
if (!requireNamespace("ggstatsplot", quietly = TRUE)) {
  install.packages("ggstatsplot")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("cowplot", quietly = TRUE)) {
  install.packages("cowplot")
}

# Load packages
library(ggstatsplot)
library(ggplot2)
library(cowplot)

Data Preparation

# Load data
data <- read.delim("files/Hiplot/069-ggpiestats-group-data.txt", header = T)

# Convert data structure
axis <- c("genre", "mpaa")
data[, axis[1]] <- factor(data[, axis[1]], levels = unique(data[, axis[1]]))
data[, axis[2]] <- factor(data[, axis[2]], levels = unique(data[, axis[2]]))

# View data
head(data)

                                               title year length budget rating
1                          Shawshank Redemption, The 1994    142     25    9.1
2     Lord of the Rings: The Return of the King, The 2003    251     94    9.0
3 Lord of the Rings: The Fellowship of the Ring, The 2001    208     93    8.8
4             Lord of the Rings: The Two Towers, The 2002    223     94    8.8
5                                       Pulp Fiction 1994    168      8    8.8
6                                   Schindler's List 1993    195     25    8.8
   votes  mpaa  genre
1 149494     R  Drama
2 103631 PG-13 Action
3 157608 PG-13 Action
4 114797 PG-13 Action
5 132745     R  Drama
6  97667     R  Drama

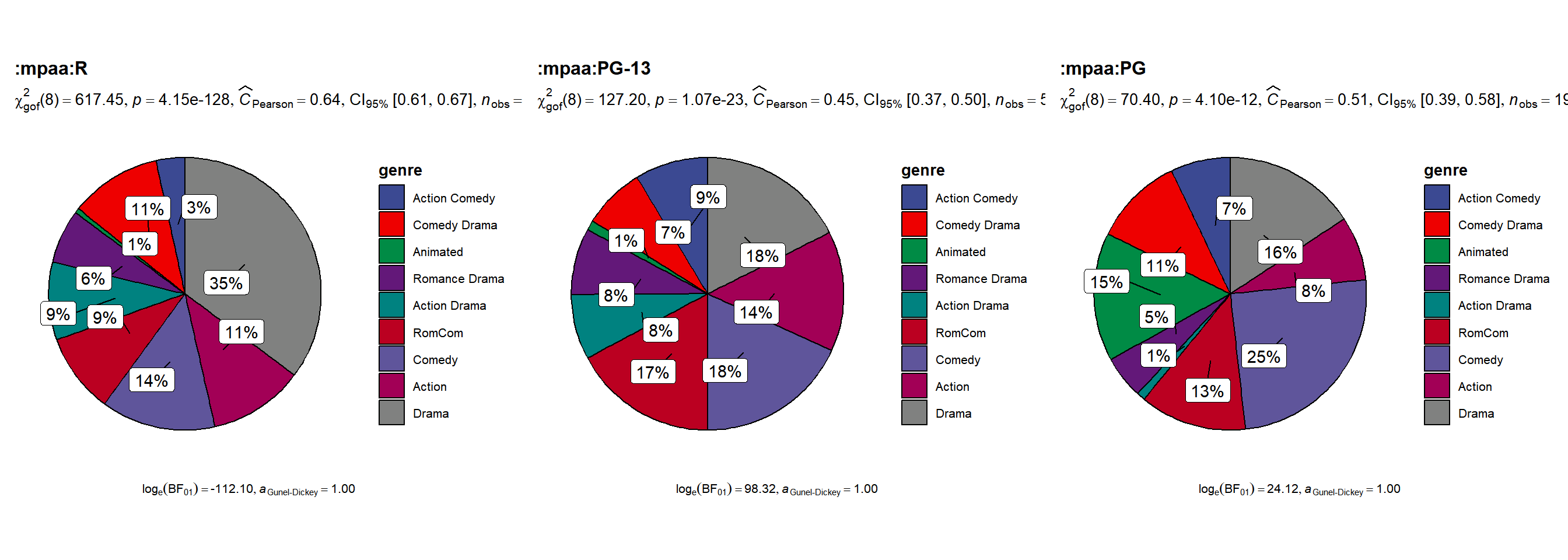

Visualization

# Piestats Group
g <- unique(data[,axis[2]])
plist <- list()
for (i in 1:length(g)) {
  fil <- data[,axis[2]] == g[i]
  plist[[i]] <-
    ggpiestats(
      data = data[fil,], x = genre,
      title= paste('', axis[2], g[i], sep = ':'),
      plotgrid.args = list(ncol = 3),
      label.repel = TRUE,
      k = 2
    ) +
    scale_fill_manual(values = c("#3B4992FF","#EE0000FF","#008B45FF","#631879FF",
                                 "#008280FF","#BB0021FF","#5F559BFF","#A20056FF",
                                 "#808180FF"))
}

plot_grid(plotlist = plist, ncol = 3)
