Deviation Plot

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Deviation Plot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/deviation-plot?lang=en

Deviation plot provides a visual representation of the differences between data points.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: ggpubr

# Install packages
if (!requireNamespace("ggpubr", quietly = TRUE)) {
  install.packages("ggpubr")
}

# Load packages
library(ggpubr)

Data Preparation

# Load data
data <- read.delim("files/Hiplot/041-deviation-plot-data.txt", header = T)

# convert data structure
data[["z_score"]] <- (data[["mpg"]] - mean(data[["mpg"]])) / sd(data[["mpg"]])
data[["Group"]] <- factor(ifelse(data[["z_score"]] < 0, "low", "high"),
                          levels = c("low", "high")
                          )

# View data
head(data)
   mpg cyl disp  hp drat    wt  qsec vs am gear carb              name
1 21.0   6  160 110 3.90 2.620 16.46  0  1    4    4         Mazda RX4
2 21.0   6  160 110 3.90 2.875 17.02  0  1    4    4     Mazda RX4 Wag
3 22.8   4  108  93 3.85 2.320 18.61  1  1    4    1        Datsun 710
4 21.4   6  258 110 3.08 3.215 19.44  1  0    3    1    Hornet 4 Drive
5 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2 Hornet Sportabout
6 18.1   6  225 105 2.76 3.460 20.22  1  0    3    1           Valiant
     z_score Group
1  0.1508848  high
2  0.1508848  high
3  0.4495434  high
4  0.2172534  high
5 -0.2307345   low
6 -0.3302874   low

Visualization

# Deviation Plot
p <- ggbarplot(data,
    x = "name",
    y = "z_score",
    fill = "Group",
    color = "white",
    sort.val = "desc",
    sort.by.groups = FALSE,
    x.text.angle = 90,
    xlab = "name",
    ylab = "mpg",
    rotate = TRUE
  ) +
  scale_fill_manual(values = c("#e04d39","#5bbad6")) +
  theme_bw() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

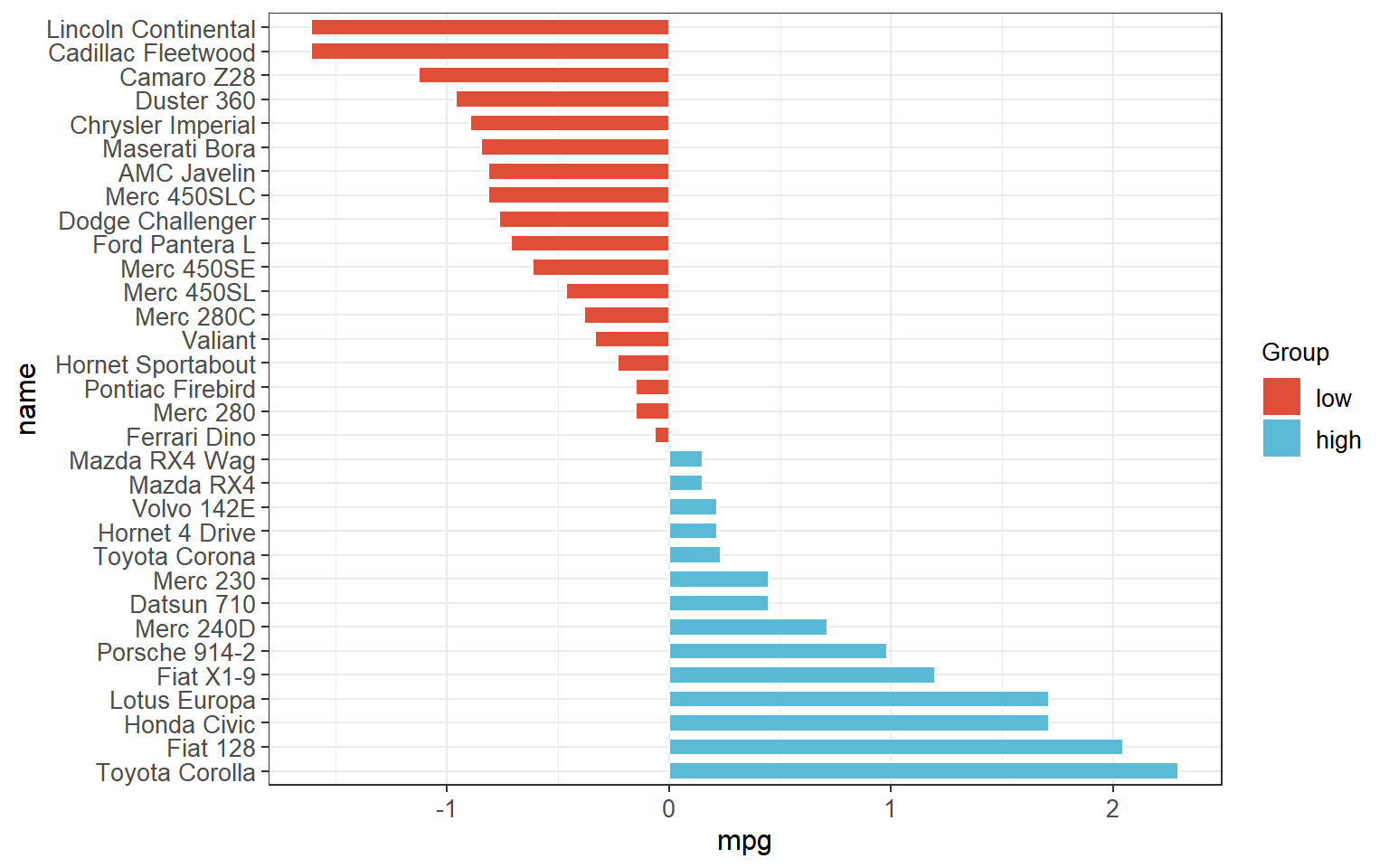

FigureΒ 1: Deviation Plot
