GOBar Plot

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot GOBar Plot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/gobar?lang=en

The gobar plot is used to display Z-score coloured barplot of terms ordered alternatively by z-score or the negative logarithm of the adjusted p-value.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: GOplot

# Install packages
if (!requireNamespace("GOplot", quietly = TRUE)) {
  install.packages("GOplot")
}

# Load packages
library(GOplot)

Data Preparation

The loaded data are the results of GO enrichment with seven columns: category, GO id, GO term, gene count, gene name, logFC, adjust pvalue and zscore.

# Load data
data <- read.delim("files/Hiplot/077-gobar-data.txt", header = T)

# Convert data structure
colnames(data) <- c("category","ID","term","count","genes","logFC","adj_pval","zscore")
data <- data[data$category %in% c("BP","CC","MF"),]
data <- data[!is.na(data$adj_pval),]
data$adj_pval <- as.numeric(data$adj_pval)
data$zscore <- as.numeric(data$zscore)

# View data
head(data)
  category         ID              term count  genes        logFC adj_pval
1       BP GO:0007507 heart development    54   DLC1 -0.970787511 2.17e-06
2       BP GO:0007507 heart development    54   NRP2 -1.515317303 2.17e-06
3       BP GO:0007507 heart development    54   NRP1 -1.141231543 2.17e-06
4       BP GO:0007507 heart development    54   EDN1  1.381300593 2.17e-06
5       BP GO:0007507 heart development    54 PDLIM3 -0.887693887 2.17e-06
6       BP GO:0007507 heart development    54   GJA1  -0.81794802 2.17e-06
      zscore
1 -0.8164966
2 -0.8164966
3 -0.8164966
4 -0.8164966
5 -0.8164966
6 -0.8164966

Visualization

# GOBar Plot
p <- GOBar(data, display = "multiple", order.by.zscore = T,
           title = "GO Enrichment Barplot ",
           zsc.col = c("#EF8A62","#F7F7F7","#67A9CF")) +
    theme(plot.title = element_text(hjust = 0.5),
          axis.text.x = element_text(size = 8))

p

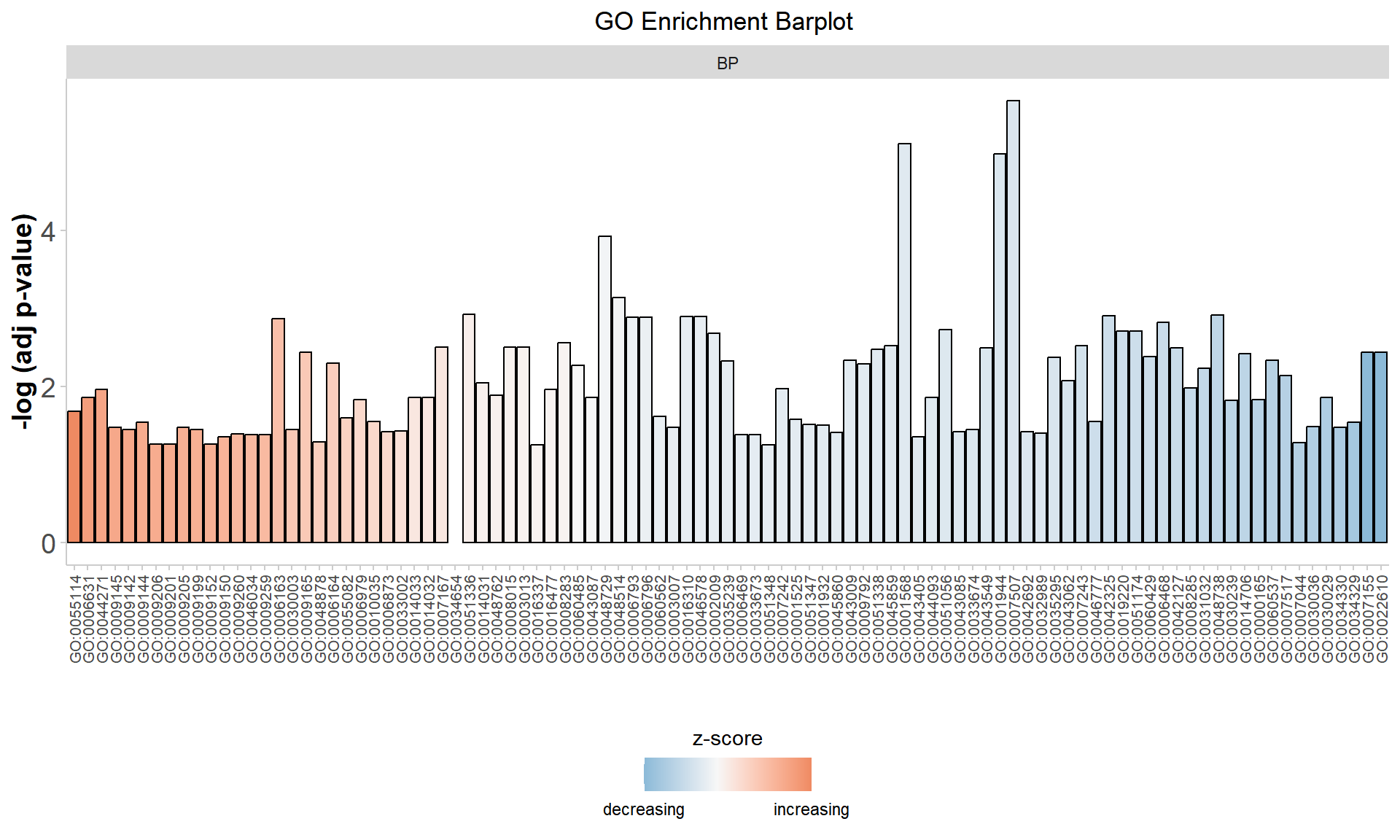

FigureΒ 1: GOBar Plot

As shown in the example figure, the x-axis represent each GO term, the y-axis represent the -log(adj_pvalue), each bar is colored by the z-score. If display is used to facet the plot the width of the panels will be proportional to the length of the x scale.
