简易配对图

作者

[编辑] 郑虎;

[审核] .

显示一个矩阵图，用于查看多个变量的相关关系和数据分布。

环境配置

  • 系统: Cross-platform (Linux/MacOS/Windows)

  • 编程语言: R

  • 依赖包: GGally

# 安装包
if (!requireNamespace("GGally", quietly = TRUE)) {
  install.packages("GGally")
}

# 加载包
library(GGally)

数据准备

# 加载数据
data <- read.delim("files/Hiplot/049-easy-pairs-data.txt", header = T)

# 查看数据
head(data)
  total_bill  tip gender smoker day   time size
1      16.99 1.01 Female     No Sun Dinner    2
2      10.34 1.66   Male     No Sun Dinner    3
3      21.01 3.50   Male     No Sun Dinner    3
4      23.68 3.31   Male     No Sun Dinner    2
5      24.59 3.61 Female     No Sun Dinner    4
6      25.29 4.71   Male     No Sun Dinner    4

可视化

# 简易配对图
p <- ggpairs(data, columns = c("total_bill", "time", "tip"),
             mapping = aes_string(color = "gender")) +
  ggtitle("Easy Pairs") +
  scale_fill_manual(values = c("#3B4992FF","#EE0000FF")) +
  theme_bw() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

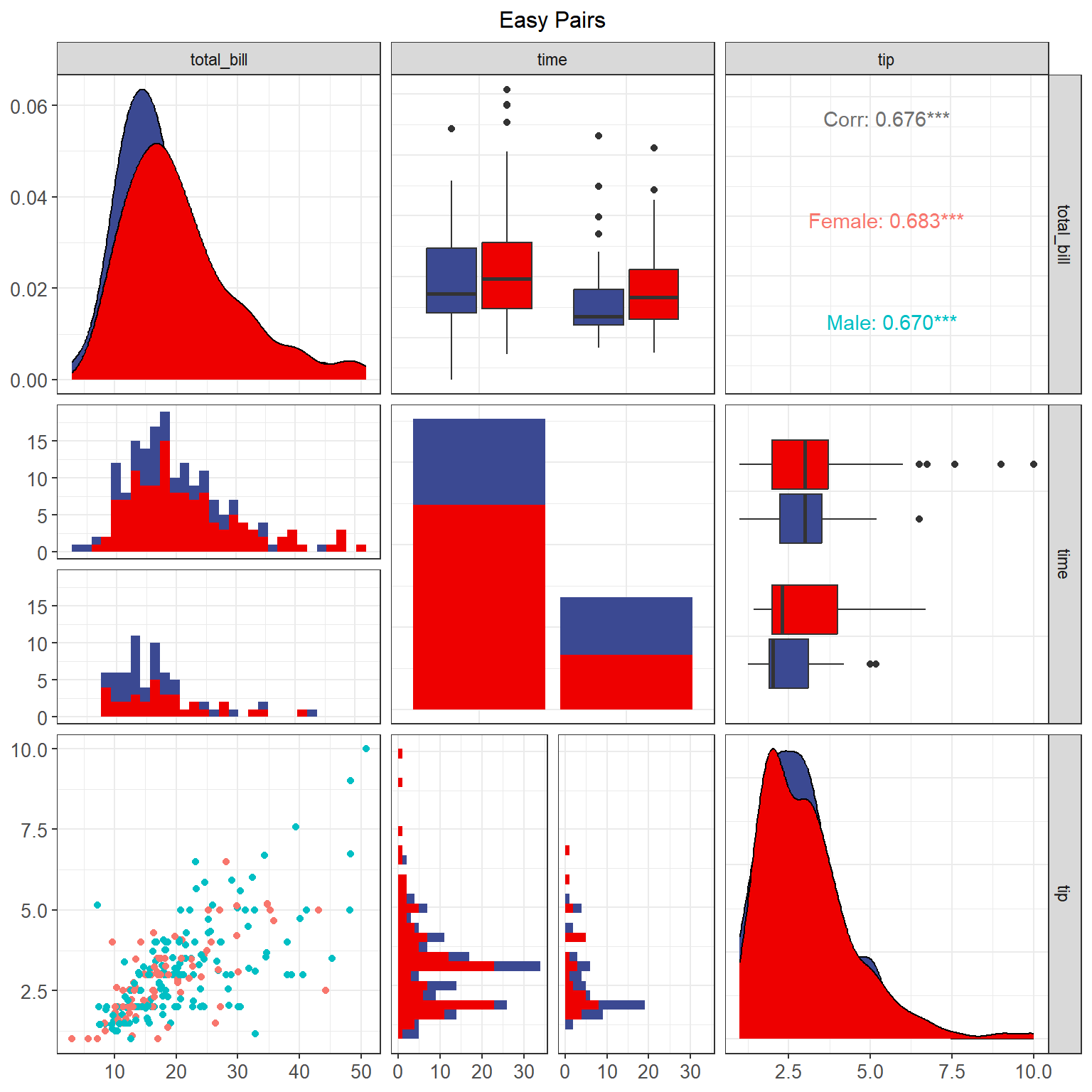

图 1: 简易配对图
