Radar

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Radar plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/radar?lang=en

Radar chart displays multivariable data in the form of two-dimensional charts representing three or more quantitative variables on the axis starting from the same point, so as to visually express the comparison of a research object in multiple parameters.

Setup

• System Requirements: Cross-platform (Linux/MacOS/Windows)

• Programming language: R

• Dependent packages: ggradar; dplyr; scales; tibble; ggplot2

# Install packages
if (!requireNamespace("ggradar", quietly = TRUE)) {
  install.packages("ggradar")
}
if (!requireNamespace("dplyr", quietly = TRUE)) {
  install.packages("dplyr")
}
if (!requireNamespace("scales", quietly = TRUE)) {
  install.packages("scales")
}
if (!requireNamespace("tibble", quietly = TRUE)) {
  install.packages("tibble")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}

# Load packages
library(ggradar)
library(dplyr)
library(scales)
library(tibble)
library(ggplot2)

Data Preparation

The loaded data is data set (expression levels of 5 genes in 4 diseases).

# Load data
data <- read.delim("files/Hiplot/150-radar-data.txt", header = T)

# Convert data structure
data <- as.data.frame(t(data))
colnames(data) <- data[1, ]
data <- data[-1, ]
for (i in seq_len(ncol(data))) {
  data[, i] <- as.numeric(data[, i])
}
data_radar <- data %>%
  rownames_to_column(var = "sample")
data_radar <- data_radar %>% mutate_at(vars(-sample), rescale)

# View data
head(data)

   value1 value2 value3 value4 value5
S1      6    160    110   3.90  2.620
S2      6    160    110   3.90  2.875
S3      4    108     93   3.85  2.320
S4      6    258    110   3.08  3.215

Visualization

# Radar
p <- ggradar(data_radar, gridline.max.linetype = 1, group.point.size = 4,
             group.line.width = 1, font.radar = "Arial", fill.alpha = 0.5,
             gridline.min.colour = "grey", gridline.mid.colour = "#007A87",
             gridline.max.colour = "grey") +
  ggtitle("Radar Plot") +
  scale_color_manual(values = c("#E64B35FF","#4DBBD5FF","#00A087FF","#3C5488FF")) +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_blank(),
        axis.text = element_text(size = 10),
        axis.text.x = element_blank(),
        axis.title.y=element_blank(),
        axis.ticks.y=element_blank(),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

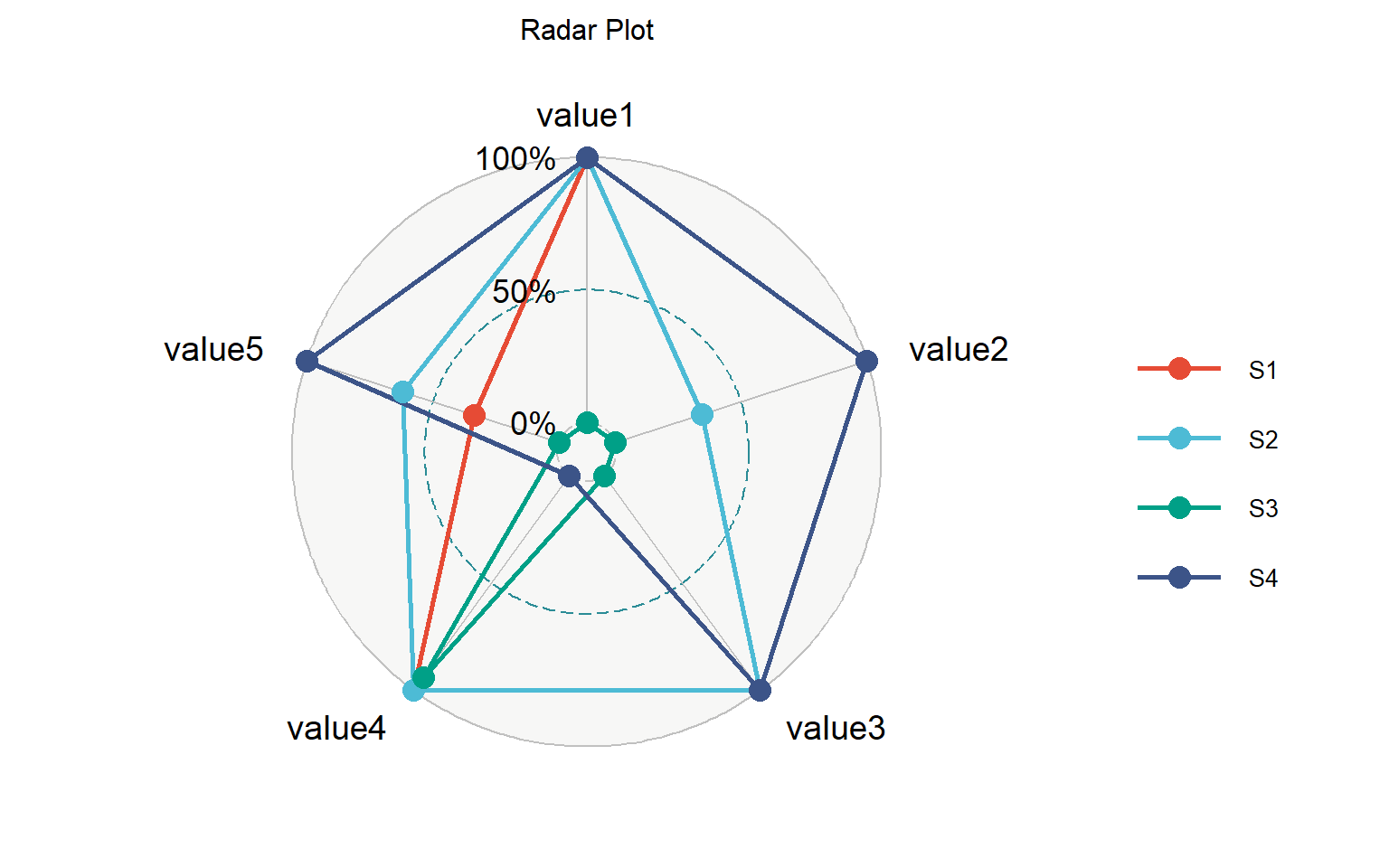

Figure 1: Radar

Each color of the radar map represents a disease, and the position of each point represents different gene expression. The higher the gene expression value, the farther away it is from the center of the circle, and vice versa.
