3D-Scatter

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot 3D-Scatter plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/scatter-3d?lang=en

3D scatter plot is to apply a number of quantitative variables to different coaxes in space and combine different variables into coordinates in space, so as to clearly explain the interaction between the three quantitative variables.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: plot3D; ggplotify

# Install packages
if (!requireNamespace("plot3D", quietly = TRUE)) {
  install.packages("plot3D")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}

# Load packages
library(plot3D)
library(ggplotify)

Data Preparation

The loaded data are three variables and grouping.

# Load data
data <- read.delim("files/Hiplot/159-scatter-3d-data.txt", header = T)

# Convert data structure
col_idx <- which(colnames(data) == "group")
data[, col_idx] <- as.factor(data[, col_idx])
shapes <- 19
shape_idx <- ""

# View data
head(data)
      temp    pressure dtime group
1 41.11057  0.49351190     1    G1
2 35.23429  0.76636476     2    G1
3 26.58407  0.63885937     3    G1
4 34.76097 -0.08106332     4    G1
5 25.76521 -0.31731579     5    G1
6 20.30115 -1.91132873     6    G1

Visualization

# 3D-Scatter
p <- as.ggplot(function() {
  plot3d <- scatter3D(data[, 1], data[, 2], data[, 3],
    pch = shapes, cex = 1,
    phi = 0, theta = 45, ticktype = "detailed",
    bty = "b2", colkey = FALSE, alpha = 1,
    xlab = colnames(data)[1], ylab = colnames(data)[2],
    zlab = colnames(data)[3],
    main = "3D-Scatter Plot",
    colvar = as.numeric(as.factor(data[, 4])),
    col = c("#e04d39","#5bbad6","#1e9f86")
  )

  legend("right", pch=19, legend = levels(data[, col_idx]),
         cex = 1.1, bty = 'n', xjust = 0.5, horiz = F,
         title = colnames(data)[col_idx],
         col = c("#e04d39","#5bbad6","#1e9f86"))
})

p

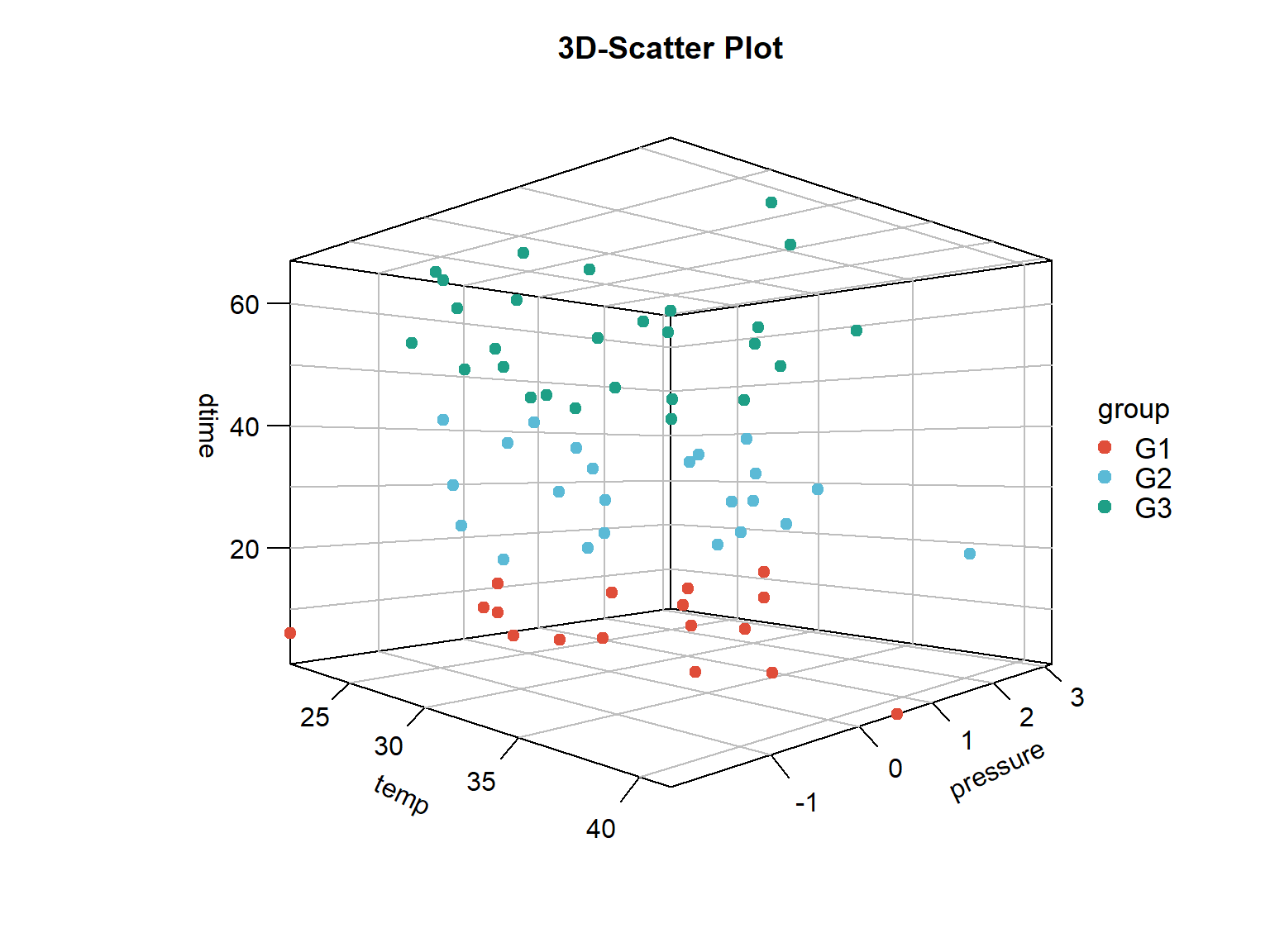

FigureΒ 1: 3D-Scatter

In the figure, temperature, pressure and time are respectively placed on x (horizontal axis), Y (vertical axis) and Z (perspective axis) to generate a THREE-DIMENSIONAL scatter plot, and the correlation between variables and their correlation degree can be intuitively found.
