Risk Factor Analysis

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Risk Factor Analysis plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/risk-plot?lang=en

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: survminer; fastStat; cutoff; ggplot2; cowplot

# Install packages
if (!requireNamespace("survminer", quietly = TRUE)) {
  install.packages("survminer")
}
if (!requireNamespace("fastStat", quietly = TRUE)) {
  install_github("yikeshu0611/fastStat")
}
if (!requireNamespace("cutoff", quietly = TRUE)) {
  install.packages("cutoff")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("cowplot", quietly = TRUE)) {
  install.packages("cowplot")
}

# Load packages
library(survminer)
library(fastStat)
library(cutoff)
library(ggplot2)
library(cowplot)

Data Preparation

# Load data
data <- read.delim("files/Hiplot/155-risk-plot-data.txt", header = T)

# Convert data structure
data <- data[order(data[, "riskscore"], decreasing = F), ]
cutoff_point <- median(x = data$riskscore, na.rm = TRUE)
data$Group <- ifelse(data$riskscore > cutoff_point, "High", "Low")
cut.position <- (1:nrow(data))[data$riskscore == cutoff_point]
if (length(cut.position) == 0) {
  cut.position <- which.min(abs(data$riskscore - cutoff_point))
} else if (length(cut.position) > 1) {
  cut.position <- cut.position[length(cut.position)]
}
## Generate the data.frame required to draw A B graph
data2 <- data[, c("time", "event", "riskscore", "Group")]

# View data
head(data)
  time event riskscore    TAGLN2       PDPN     TIMP1      EMP3 Group
1 1014     0 0.8206424 1.0612565 0.04879016 0.1484200 0.1906204   Low
2  246     1 1.0582599 1.2584610 0.20701417 0.3506569 0.2546422   Low
3 2283     0 1.1693457 1.2697605 0.00000000 0.2231436 0.3364722   Low
4 1757     0 1.2274565 1.7209793 0.00000000 0.5822156 0.2231436   Low
5 3107     1 1.2806984 0.5933268 0.37156356 0.1043600 0.5709795   Low
6  332     1 1.2891095 1.2892326 0.09531018 0.2070142 0.3987761   Low

Visualization

# Risk Factor Analysis
## Figure A
fA <- ggplot(data = data2, aes(x = 1:nrow(data2), y = data2$riskscore,
                               color = Group)) +
  geom_point(size = 2) +
  scale_color_manual(name = "Risk Group",
                     values = c("Low" = "#0B45A5", "High" = "#E20B0B")) +
  geom_vline(xintercept = cut.position, linetype = "dotted", size = 1) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.ticks.x = element_blank(), axis.line.x = element_blank(),
        axis.text.x = element_blank(), axis.title.x = element_blank(),
        axis.title.y = element_text(size = 14, vjust = 1, angle = 90),
        axis.text.y = element_text(size = 11),
        axis.line.y = element_line(size = 0.5, colour = "black"),
        axis.ticks.y = element_line(size = 0.5, colour = "black"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  coord_trans() +
  ylab("Risk Score") +
  scale_x_continuous(expand = c(0, 3))
## Figure B
fB <- ggplot(data = data2, aes(x = 1:nrow(data2), y = data2[, "time"],
             color = factor(ifelse(data2[, "event"] == 1, "Dead", "Alive")))) +
  geom_point(size = 2) +
  scale_color_manual(name = "Status", values = c("Alive" = "#0B45A5", "Dead" = "#E20B0B")) +
  geom_vline(xintercept = cut.position, linetype = "dotted", size = 1) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.ticks.x = element_blank(), axis.line.x = element_blank(),
        axis.text.x = element_blank(), axis.title.x = element_blank(),
        axis.title.y = element_text(size = 14, vjust = 2, angle = 90),
        axis.text.y = element_text(size = 11),
        axis.ticks.y = element_line(size = 0.5),
        axis.line.y = element_line(size = 0.5, colour = "black"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  ylab("Survival Time") +
  coord_trans() +
  scale_x_continuous(expand = c(0, 3))
## middle
middle <- ggplot(data2, aes(x = 1:nrow(data2), y = 1)) +
  geom_tile(aes(fill = data2$Group)) +
  scale_fill_manual(name = "Risk Group", values = c("Low" = "#0B45A5", "High" = "#E20B0B")) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.line = element_blank(), axis.ticks = element_blank(),
        axis.text = element_blank(), axis.title = element_blank(),
        plot.margin = unit(c(0.15, 0, -0.3, 0), "cm"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  scale_x_continuous(expand = c(0, 3)) +
  xlab("")
## Figure C
heatmap_genes <- c("TAGLN2", "PDPN", "TIMP1", "EMP3")
data3 <- data[, heatmap_genes]
if (length(heatmap_genes) == 1) {
  data3 <- data.frame(data3)
  colnames(data3) <- heatmap_genes
}
# Normalization
for (i in 1:ncol(data3)) {
  data3[, i] <- (data3[, i] - mean(data3[, i], na.rm = TRUE)) /
  sd(data3[, i], na.rm = TRUE)
}
data4 <- cbind(id = 1:nrow(data3), data3)
data5 <- reshape2::melt(data4, id.vars = "id")
fC <- ggplot(data5, aes(x = id, y = variable, fill = value)) +
  geom_raster() +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.line = element_blank(), axis.ticks = element_blank(),
        axis.text.x = element_blank(), axis.title = element_blank(),
        plot.background = element_blank()) +
  scale_fill_gradient2(name = "Expression", low = "#0B45A5", mid = "#FFFFFF",
                       high = "#E20B0B") +
  theme(axis.text = element_text(size = 11)) +
  theme(legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  scale_x_continuous(expand = c(0, 3))

p <- plot_grid(fA, fB, middle, fC, ncol = 1, rel_heights = c(0.1, 0.1, 0.01, 0.15))

p

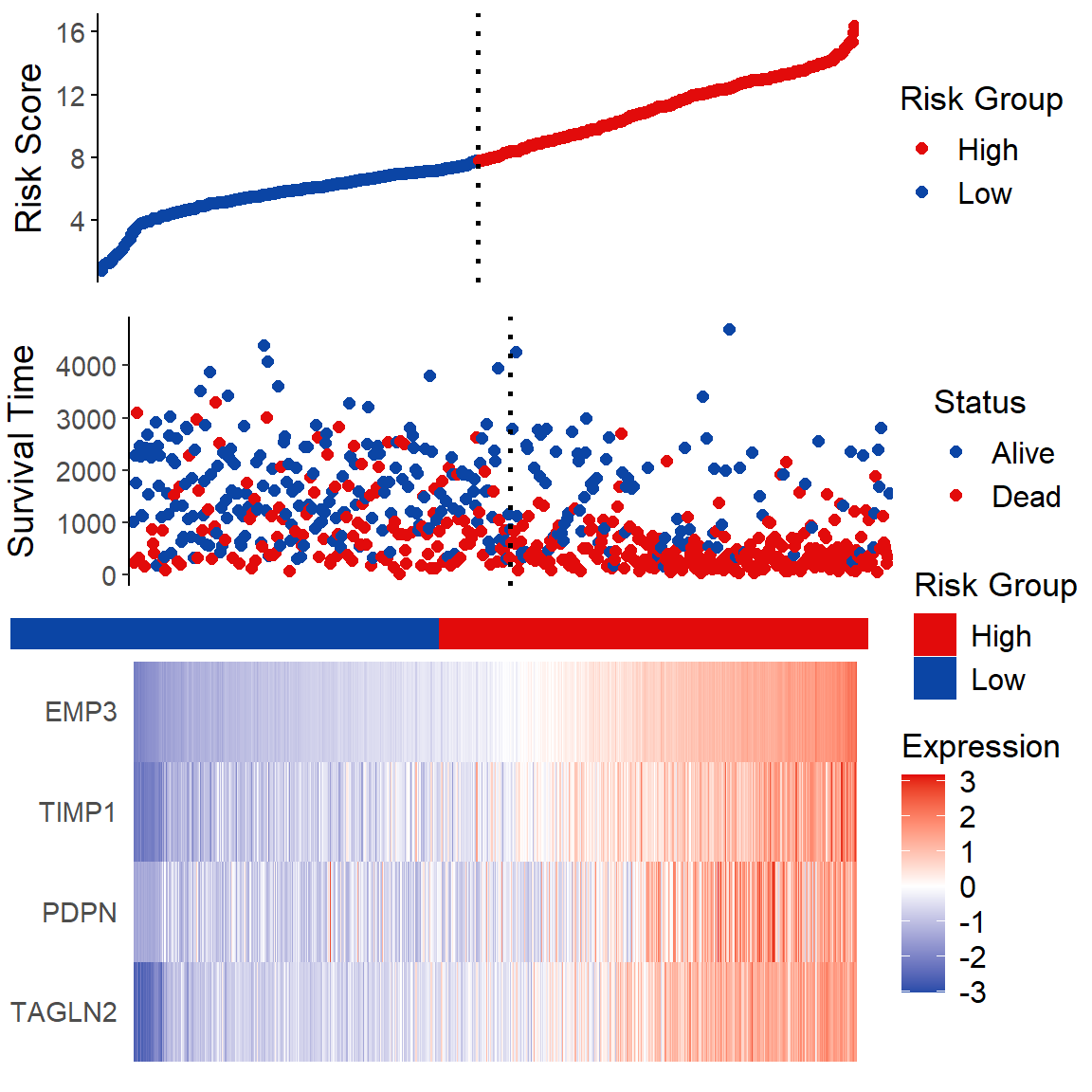

FigureΒ 1: Risk Factor Analysis
