The moon chart is a graph that uses the moon’s waxing and waning to reflect the size of the data.

Setup

• System Requirements: Cross-platform (Linux/MacOS/Windows)

• Programming language: R

• Dependent packages: gggibbous; ggplot2

# Install packages
if (!requireNamespace("gggibbous", quietly = TRUE)) {
  install.packages("gggibbous")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}

# Load packages
library(gggibbous)
library(ggplot2)

Data Preparation

The loaded data are the name of the restaurant and the number of types of food in the restaurant, the number of decorative style types, the number of tableware sets and the number of price types.

# Load data
data <- read.delim("files/Hiplot/122-moon-charts-data.txt", header = T)

# Convert data structure
data[, 1] <- factor(data[, 1], levels = unique(data[, 1]))
rest_cols <- colnames(data)[-1]
tidyrest <- reshape(
  data,
  varying = rest_cols,
  v.names = "Score",
  timevar = "Category",
  times = factor(rest_cols, levels = rest_cols),
  idvar = colnames(data)[1],
  direction = "long"
)

# View data
head(data)

                                                                                  Restaurant
1 Anscombes Luncheonette\t5\t2\t4\t4\nChai Squared\t3\t5\t2\t5\nTukeys Honest Southern Diner
2                                                                               Bagels ANOVA
3                                                                              Spearmint Row
  Food Decor Service Price
1    4     3       3     2
2    4     1       3     5
3    1     5       5     2

Visualization

# Moon charts
p <- ggplot(tidyrest, aes(0, 0)) +
  geom_moon(aes(ratio = (Score - 1) / 4), fill = "black") +
  geom_moon(aes(ratio = 1 - (Score - 1) / 4), right = FALSE) +
  facet_grid(Category ~ Restaurant, switch = "y") +
  theme_minimal() +
  theme(
    panel.grid = element_blank(),
    axis.text = element_blank(),
    axis.title = element_blank()
  )

p

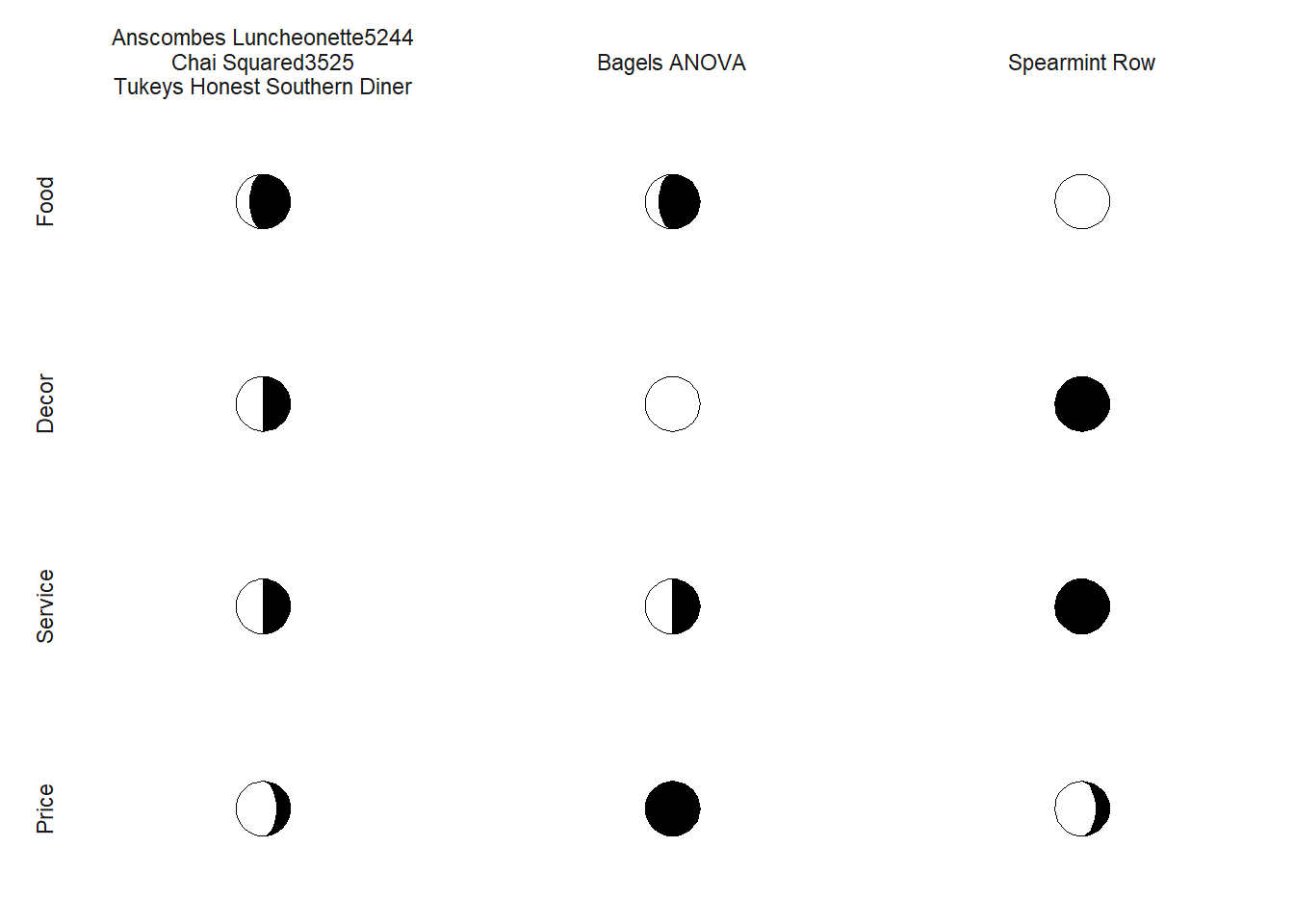

Figure 1: Moon charts

The first row of the diagram shows the name of the restaurant, the first column shows different variables in the restaurant, the blank moon represents the number of 1 (the least number), the black moon represents the number of 5 (the most number) data, as the number of data increases, the black area of the moon gradually becomes larger, that is, gradually becomes full moon.
