Scatter2

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Scatter2 plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/scatter2?lang=en

Two-dimensional spatial scatter to demonstrate multi-numerical variable relationships.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: grafify; ggplot2

# Install packages
if (!requireNamespace("grafify", quietly = TRUE)) {
  install.packages("grafify")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}

# Load packages
library(grafify)
library(ggplot2)

Data Preparation

# Load data
data <- read.delim("files/Hiplot/162-scatter2-data.txt", header = T)

# View data
head(data)
                car  mpg cyl  disp  hp drat    wt  qsec vs am gear carb
1    Hornet 4 Drive 21.4   6 258.0 110 3.08 3.215 19.44  1  0    3    1
2 Hornet Sportabout 18.7   8 360.0 175 3.15 3.440 17.02  0  0    3    2
3           Valiant 18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
4        Duster 360 14.3   8 360.0 245 3.21 3.570 15.84  0  0    3    4
5        Merc 450SE 16.4   8 275.8 180 3.07 4.070 17.40  0  0    3    3
6        Merc 450SL 17.3   8 275.8 180 3.07 3.730 17.60  0  0    3    3

Visualization

# scatter2
symsize <- data[,"gear"]
data[,"gear"] <- factor(data[,"gear"], levels = unique(data[,"gear"]))
p <- ggplot(data, aes(x = mpg, y = disp)) +
  geom_point(alpha = 1, aes(size = gear, fill = gear), shape = 21, stroke = 0.5) +
  labs(fill = "gear", color = "gear") +
  guides(x = guide_axis(angle = 0),
         fill = guide_legend(title = "gear"),
         color = FALSE,
         size = guide_legend(title = "gear")) +
  ggtitle("Scatter2 Plot") +
  scale_fill_grafify() +
  theme_classic(base_size = 20) +
  theme(text = element_text(family = "Arial"),
        strip.background = element_blank(),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

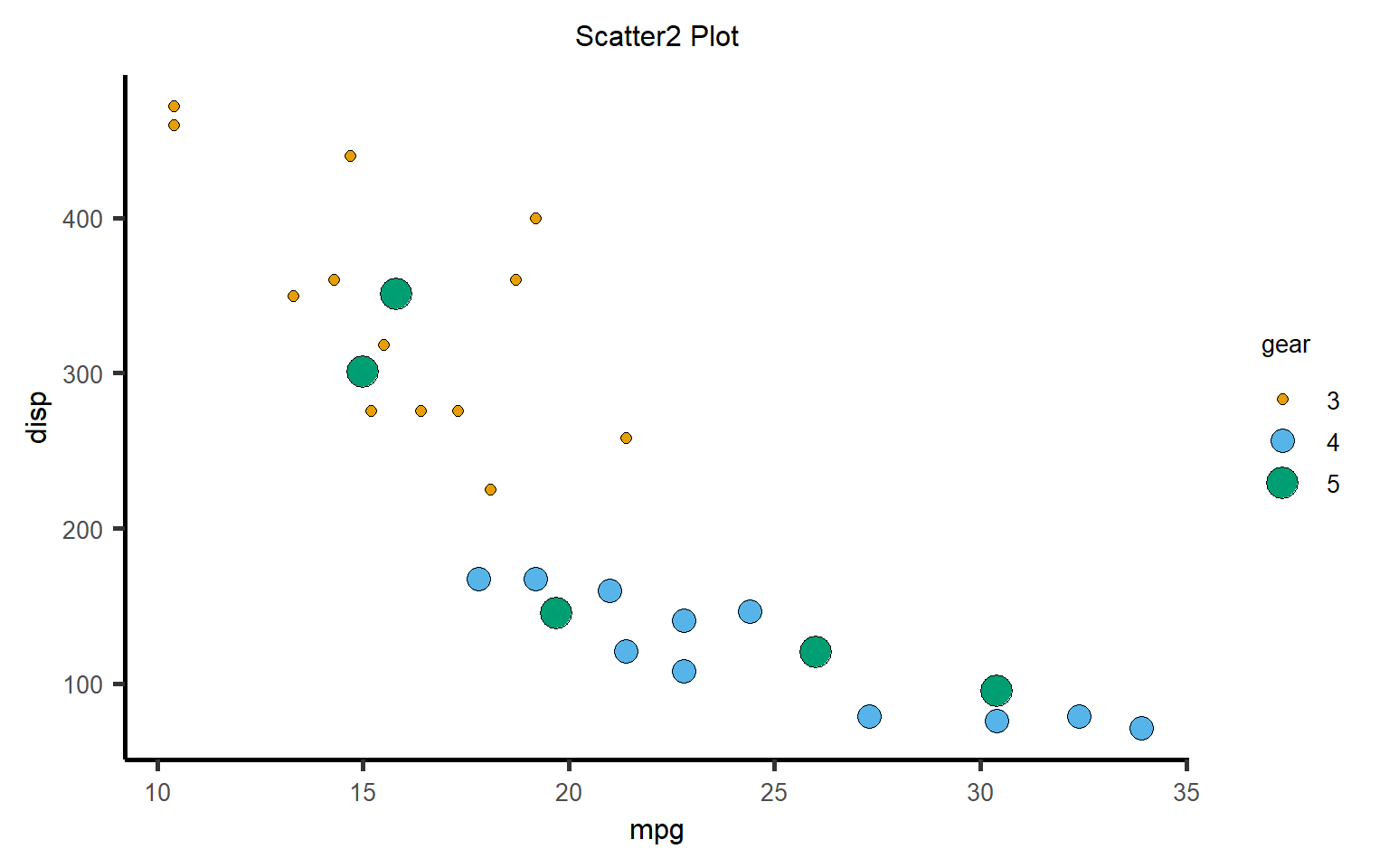

FigureΒ 1: scatter2
